Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Model Number: CH-E
  • Material: Sandwich Panel
  • Use: Carport, Hotel, House, Kiosk,Booth, Office, Shop, Toilet, Villa, Warehouse, Workshop,Plant
  • Certification: ISO9001:2008

Packaging & Delivery

Packaging Details In nude
Delivery Time 15 work days

Specifications

house plans designs:
10aa, 20aa, 40aa size available
Can be lift and move wholely
Flat package, be wrapped separately

Material List of house plans design as follow:

Chasis: Q235 steel, anti paint. 4mm steel as main beam and 2.3mm steel as second beam

Roof & ceiling: color steel sheet as roof sheet+40mm rock wool insulation+ 50mm EPS sandwich panel as ceiling. Ready for the wire and wire pipe+1 pc outside power connecting plug, 2 light(220V)

Column: Q235,anti-rust,panited

Conner: ISO container corner, iron.

Wall: 50mm/75mm/100mm/150mm EPS/Glass wool/PU/XPS color steel sandwich panel. Ready the electrical pipe and wire, 1 switch +2 socket +1 distribution box(220V)

Floor and deco: 18mm plywood, with 2.0mm vinly sheet or laminated floor

Window: UPVC or aluminum window, ready in panel

Door: SIP door, compound wooden door, security steel door etc, ready in panel

Accessories: rivet, screw, glue, etc



Optional facilities: toilet, shower, washbasin, urinal, water pipe, kitchen

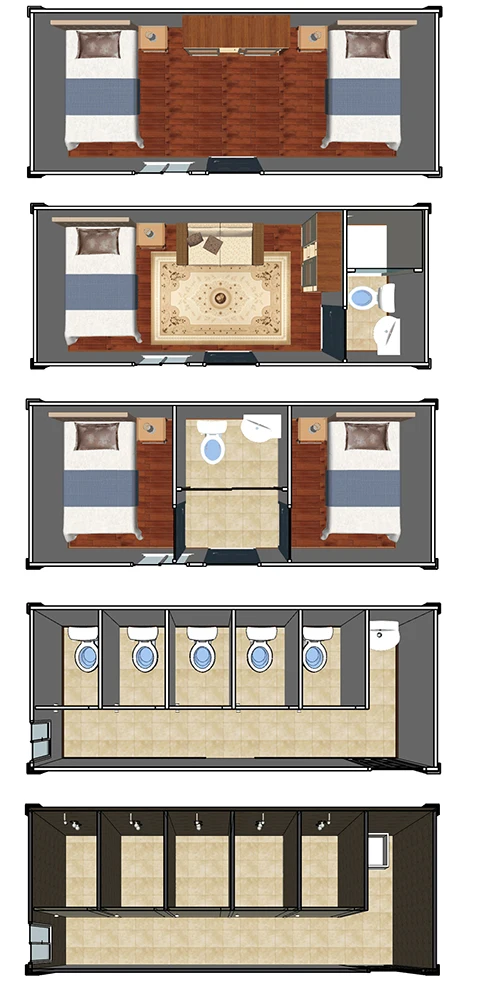

Plan: 1 bedroom with toilet, 2 bedroom unit, kitchen container, toilet container, office and more option for refer



Technical data

* Roof load: 0.5KN/sqm

* Floor load: 1.5KN/sqm

* Wind load: against wind speed 180km/h (Chinese standard)

* Seismic fortification intensity:  magnitudes 8

* Suitable temperature scope.-50°C~+50°C

(If the criteria were exceeded, it can also load by reinforcing the structure)

* 4 experienced technicians can build 6-8 prefab houses with dimension of 20 feet house



Feature

* Long life span more than 20 years

* Modular part, 90% work finish in factory , simple tools such as spanner, bolt driver and so on needed

* Easy and fast to install, 4 experienced technicians can build 6-8 prefab houses with dimension of 20 feet house

* Be combined freely to a big space in horizontal and vertical

* Re-location wholely available

* Environment friendly, no building rubble

* Flat package, be wrapped separately

* Stable house with solid frame

* Waterproof and good insulation for heat and sound

* Low demand of ground work, suit for different ground

* Multi layer is available

* 10’, 20’, 40’ size available

* Many plan for 1 bedroom with toilet, 2 bedroom unit, kitchen container, toilet container, office etc on option



Application

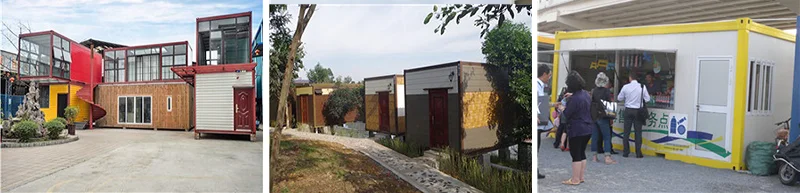

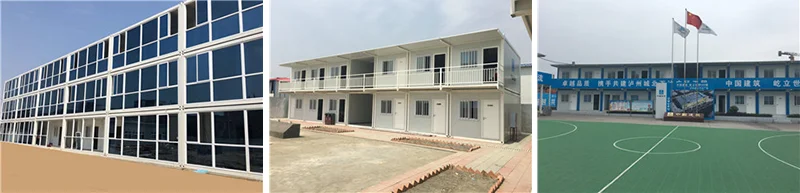

Modular office, labor dorm, hotel, suit apartment, guard box and so on.

Turn key house is available



More information, pls feel free to contact us.



IteamThickness of wall panel(mm) External Size(L*W*H) Internal Size (L*W*H) Packing Size (L*W*H) Load Quan (40HQ)
10' 50 2990*2438*2590/2670 2780*2260*2260/2350 2990*2438*650 16
10' 75 2990*2438*2590/2670 2780*2220*2260/2350 2990*2438*770 12
10' 100 2990*2438*2590/2670 2780*2160*2260/2350 2990*2438*860 12
20' 50 5900*2438*2590/2670 5730*2260*2260/2350 5900*2438*650 8
20' 75 5900*2438*2590/2670 5690*2220*2260/2350 5900*2438*770 6
20' 100 5900*2438*2590/2670 5630*2160*2260/2350 5900*2438*860 6
